Efficiency,
productivity and safety are vital to your organization. With
a wide variety of models and features, Motorola's two-way
portable radios are an ideal solution for your communication
needs. |
| |
|
|
APX7000 |
|
|
|
|
|
|
Features and Benefits |
| Available
in 700/800 MHz, VHF, and UHF Range 1 bands |
|
Optional multi-band operation |
|
Trunking standards supported:
• Clear or digital encrypted ASTRO®25 Trunked Operation
• Capable of SmartZone®, SmartZone Omnilink, SmartNet® |
|
Analog MDC-1200 and Digital APCO P25
Conventional System Configurations |
|
Narrow and wide bandwidth digital
receiver (6.25kHz /12.5 kHz / 25 kHz) |
|
Embedded digital signaling (ASTRO &
ASTRO 25) |
|
Integrated GPS capable |
| Seamless
wideband scan |
|
Intelligent Lighting |
| Radio
Profiles |
|
Unified Call List (Dual Display model
only) |
| Expansion
Slot |
| Micro SD
removable memory card |
| User
programmable voice announcement |
Meets
Applicable Mil Specs 810C, D, E
and F |
| |
|
|
XTS5000
Model III |
|
|
|
| |
|
Channels -
1000 channels — Model III |
|
|
Power -
3W—700/800MHz, 6W—VHF,
1—5W—UHF, 2—5W—UHF |
|
|
Battery Life
(based on 5/5/90 duty cycle) -
8 hours — Ultra High
Capacity NiCD, 8 hours — Standard Ultra High
Capacity NiMH, 8 hours — Lithium Ion, 8 hours —
Ultra High Capacity NiCD Rugged |
|
|
|
|
Display
— 2 line icons plus 4 line
12 characters per line
|
|
|
Coverage -
Programming Software allows
adjustable power output for varying coverage
|
|
|
Mil Spec -
810 C, D, E and F, Rugged
radio models are available |
|
|
Dimensions H x W x
L (with standard battery) -
12.72” x 2.44” x 1.83”
(323.01 mm x 61.98 mm x 46.48 mm)
|
|
|
Weight (with
standard battery) -
12.5oz (354.38 g) without battery, 21.6oz (612.36 g)
with Ultra High Capacity NiCD battery
|
|
|
Frequency -
700/800MHz, UHF Range I, UHF
Range II, VHF |
|
|
| |
|
|

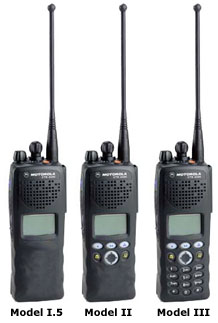

XTS2500
Model I.5, II & III |
|
|
|
| |
|
Channels -
96 channels Model I.5; 850
channels Models II & III |
|
|
Power -
1–3W—700/800MHz, 1–4W—UHF,
1–5W—VHF |
|
|
Battery Life
(based on 5/5/90 duty cycle) -
8 hours — High Capacity NiCD,
10 hours — High Capacity NiMH |
|
|
Keypad -
Model 1.5 — No, Model II —
No, Model III — Yes, full |
|
|
Display -
All models feature an LCD
display |
|
|
Coverage -
Programming Software allows
adjustable power output for varying coverage
|
|
|
Mil Spec -
810 C, D, E and F
|
|
|
Dimensions H x W x
L (with standard battery) -
10.86” x 2.3” x 1.5” (275.84
mm x 58.42 mm x 38.1 mm) |
|
|
Weight (with
standard battery) -
11.0 oz (311.85 g) without battery, 19.85 oz (562.75
g) with NiCD battery, 20.63 oz (584.86 g) with NiMH
battery |
|
|
Frequency -
700/800MHz, UHF Range 1, UHF
Range 2, VHF |
|
High performance, small size. Ideal for public
services, facilities, public works and utility
operations. ASTRO®
Analog and Digital Trunking with Mutual Aid capable
of Digital/Analog- P25 700/800 MHz operation. |
|
|
|
|
|
